Battery Chamber Safety Interlock Design:What to Review Before Purchase

Define the test arrangement first

Start with the battery and the test you intend to run. Battery format, chemistry, capacity or energy, state of charge, loading arrangement and temperature profile give the supplier a basis for reviewing the project. State whether charging or discharging will take place inside the chamber and identify any external test system.

During an externally controlled charge-discharge test, the chamber manages environmental conditions and the battery cycler manages the electrical test. Stopping the chamber temperature program does not, by itself, stop charging or discharging. Before ordering, agree how the two systems should respond to a chamber alarm.

SANWOOD's Explosion-Proof Battery Test Chamber product page identifies door chains, pressure-relief ports and gas detection among its protective features. These provide concrete starting points for a configuration review: how the door is restrained, where pressure is released, and what happens when gas is detected. The required control response must be confirmed for the proposed chamber and connected test system.

Connect each monitored condition to a defined action

A useful alarm description identifies the input and the operation it affects. Chamber-air temperature and battery temperature refer to different measurement locations; an air-temperature reading cannot establish the temperature of every sample. Where gas or smoke detection is specified, record the sensor type, location and monitoring scope.

Next, ask what happens when the monitored condition reaches its trigger point. Does the system display an alarm, prevent a test from starting, stop a chamber function or send a signal to the external cycler? An alarm communicates a condition; an interlock affects an operation or permission. Their relationship must be explicit.

For each relevant condition, the technical agreement should state what triggers the response, what action follows and how that action will be checked. “Automatic shutdown” is not specific enough: identify which operations stop and which protective functions remain active.

Confirm the external battery cycler response

If a chamber alarm must interrupt charging or discharging, the chamber and cycler need an agreed interface and a defined response at the receiving system. Review the two sides together before ordering.

• Identify the chamber condition that initiates the signal.

• Specify the signal transferred and the response required at the cycler.

• Define how the receiving system’s response will be verified during acceptance.

For example, if a chamber alarm is required to stop charging, the acceptance check should verify both the chamber's output signal and the cycler's resulting action. Checking the chamber alarm alone leaves the external response unverified.

Keep the scope precise. Stopping a temperature program, interrupting charge-discharge cycling and electrically isolating a circuit are different actions. The quotation should identify which actions are included and which supplier is responsible for each interface.

Review door hardware and protective components separately

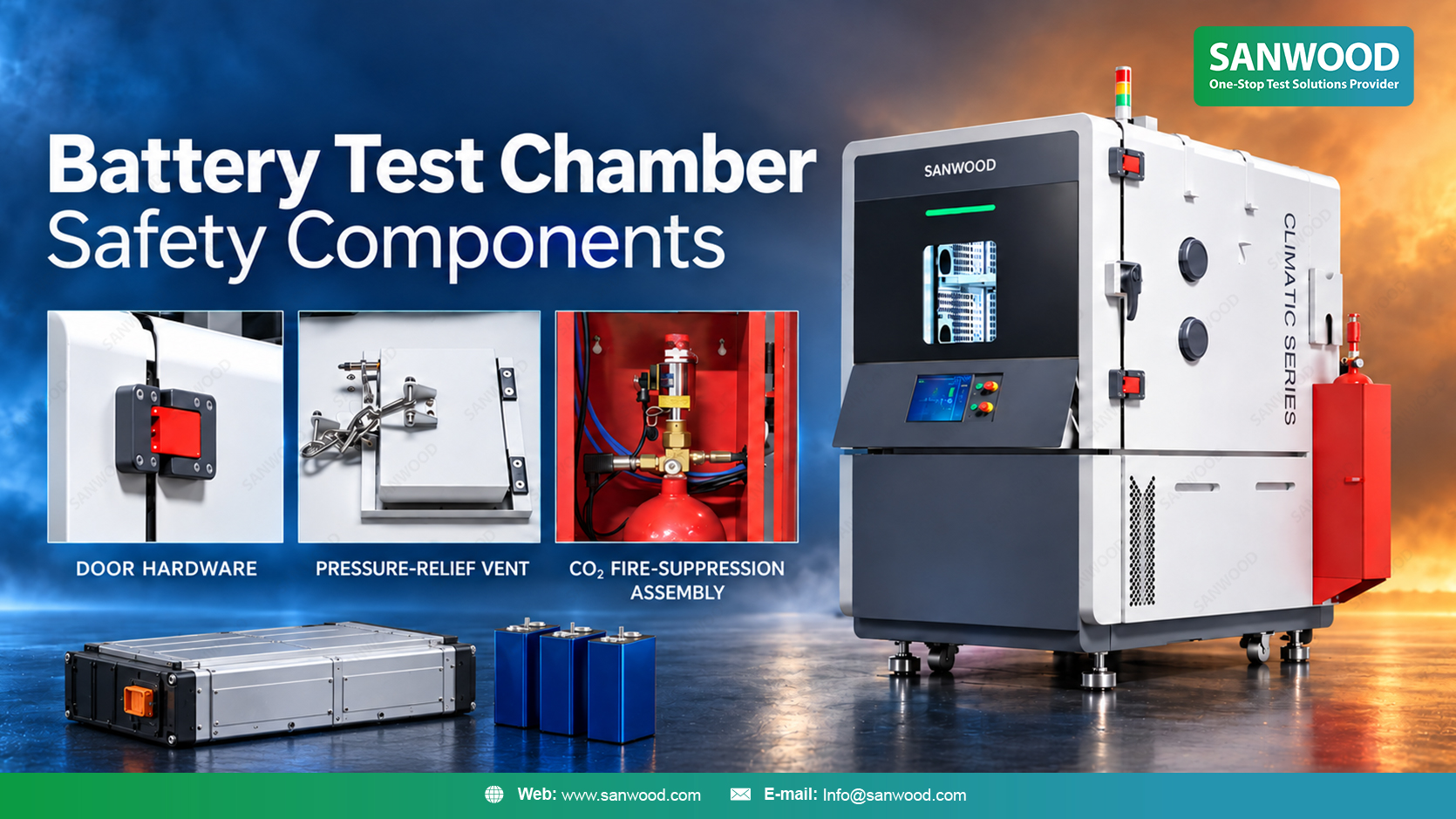

Product photographs help identify protective components, but the configuration documents should explain what each component does and whether it is connected to the control system.

Door protection includes mechanical functions and, where specified, electrical control functions. A handle or restraint secures the door mechanically. A door-position sensor provides information about whether the door is open or closed; an interlock uses that information to permit or prevent a defined operation. Confirm whether these functions are included and what opening the door does to the test.

A pressure-relief vent provides a designated release path. It has a different role from pressure measurement or powered exhaust. Review its arrangement and installation requirements separately. The presence of a vent does not establish that the chamber has a pressure sensor or an electrically controlled exhaust sequence.

For a configuration that includes CO₂ fire suppression, confirm how the system is activated, how discharge is controlled and how it interacts with other protective functions. A photograph of the assembly does not establish its activation logic.

Record the agreed hardware and control functions in the project specification so that the supplied configuration can be checked during acceptance.

Separate acknowledgment, reset and restart

After an alarm, operators need to know what each control action changes. Acknowledgment recognizes an alarm indication. Reset changes the state of a defined alarm or protective function once its required conditions are satisfied. Restart begins the test again.

The operating instructions should explain what must be checked before reset, whether the external cycler requires a separate reset, and what action allows testing to restart. Clearing an alarm message should not be confused with resetting an emergency stop or restarting the controller.

A cleared alarm indication is not, on its own, permission to reopen the chamber or resume testing. Access and recovery after a battery event should follow the applicable operating instructions and laboratory procedures.

Prepare a configuration review with SANWOOD

If an external cycler is involved, include its make and model, available interface information and the action required when a chamber alarm occurs. These details give SANWOOD a basis for reviewing the chamber's protective functions and the connections needed for your test arrangement.

The resulting proposal should make clear which functions are included, which interfaces require coordination with the cycler supplier and how the agreed responses will be checked.

Frequently asked questions

Does a chamber alarm automatically stop an external cycler?

Only where the connected systems have been configured for that response. Confirm the initiating condition, interface signal, cycler action and acceptance check.

Does a door chain confirm that the chamber has a door interlock?

No. A door chain is a mechanical restraint. It does not establish that door-position sensing or an electrical interlock is included. Check these functions separately in the proposed configuration.

Does resetting an alarm restart the test?

Reset and restart have different purposes. The operating instructions should explain what the reset changes and what conditions and actions permit testing to resume.
