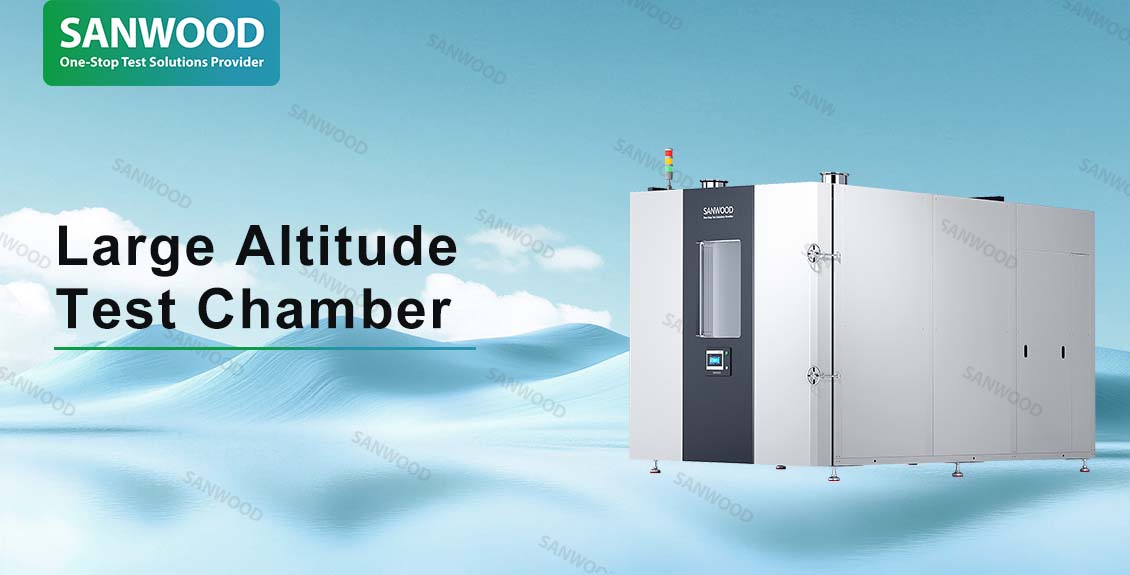

Large Altiude test chamber|Sanwood Technology One-stop Low Pressure Test Solution

Sanwood Technology's Large Altiude test chamber is a comprehensive test equipment that specializes in simulating high altitude, plateau, near-space and space environments.Through the coordinated regulation of the high-precision air pressure control system (normal pressure ~ 80.0kPa) and the wide temperature and humidity range (+25℃ ~ +50℃), the multi-dimensional coupled extreme environmental conditions such as low /high temperature, low pressure, humidity and heat are truly reproduced.

Sanwood Technology's Large Altiude test chamber is widely used in aerospace, semiconductor manufacturing, automobiles, military research, low-altitude economy and other fields to test the pressure resistance, sealing performance and reliability of electronic and electrical products, materials, components, equipment, etc. under low temperature, high temperature and low-pressure environments, helping to test product performance under extreme conditions, shorten test time and improve product reliability.

Technical Parameters

Temperature range：+25℃~+50℃ constant temperature, heating load 34KW

Temperature fluctuation：≤±0.5℃(under normal pressure, without load)

Temperature deviation：≤±2.0°C (under normal pressure, without load)

Temperature uniformity：≤2.0°C (under normal pressure, without load)

Pressure range：Normal pressure~80.0kPa

Pressure deviation：≤ ±2kPa

Conditions of Use：Ambient temperature: + 5℃~+35℃, ambient humidity ≤85%RH, cooling water temperature ≤32℃, cooling water pressure 0.25~0.4MPa, cooling water volume: 20 tons/hour.

Equipment Features

Meet the test standards, safe and reliable；

Pressure control accuracy：Through high-precision vacuum pump and pressure sensor, stable control of ±0.5% is achieved.

Rapid vacuuming：The target air pressure can be reached in a short time (such as 10 ~ 30 minutes), improving the test efficiency.

Multi-system collaborative design

Cascade Refrigeration System：Adopt two-stage or cascade compressor refrigeration to ensure ultra-low temperature stable operation.

Heating balance system：PID regulated electric heater cooperates with refrigeration system to achieve rapid temperature switching.

Air pressure-temperature coupling control：Independently control air pressure and temperature to avoid mutual interference and ensure test accuracy.

Sealing design：Highly sealed box (such as silicone sealing strips) and anti-condensation technology to ensure airtightness under low pressure

Test standard

The temperature and pressure parameters are precisely controllable, meeting the test requirements of national standards (GB/T), US military standards (MIL-STD), etc., such as:

GB/T2423.1-2008 Environmental testing for electrical and electronic products Part 1: Test methods Test A: Low temperature

GB/T2423.25-2008 Environmental testing for electrical and electronic products Part 2: Test methods Test Z/AM: Low temperature/low pressure combined test

GB/T5170.10-2008 Basic parameter verification methods for environmental test equipment for electrical and electronic products

GJB150.4-86 Environmental test method for military equipment Low pressure (altitude) test

GB/T10590-2006 Technical requirements for low temperature/Large Altiude test chambers

MIL-STD-781A/B/C American military standard reliability test standard

Note: Meet but not limited to the above standards

Service

Pre-sale：1.Professional technical consultation

2.Equipment selection

3.Product test plan recommendations

4.Laboratory construction plans, etc

During the sales process: 1.Customer communication and progress reports

2.Related guidance, installation, debugging, test machine, etc

3.Coordinated measurement

After-sales:1.Technical training: operation and use, daily maintenance, common fault detection and troubleshooting

regular return visits, equipment inspections, troubleshooting, and delivery of the latest information

The dedicated maintenance personnel providing rapid response services ensure that faults are eliminated promptly and effectively

Sanwood Technology's Large Altiude test chamber strictly complies with domestic and international testing standards such as the national standard (GB/T) and the US military standard (MIL-STD), ensuring that each device can provide a compliant, accurate and traceable testing environment.Whether it is the airworthiness certification of aerospace products or the reliability verification of electronic components, our equipment can fully meet the requirements of industry standards and help you pass various product testing and certifications.

With its precise environmental simulation capabilities and complete testing service system, Sanwood Technology is committed to providing efficient and reliable testing support to customers in the low-altitude field, helping to improve product performance and safety certification.If you need more professional testing solutions, please contact Sanwood Technology and we will tailor professional services for you.
